7.5KW Variable Speed Drive ENergy saver

CSV8

Motor Power 7.5 kW (10 hp)

Free Air Delivery  0.44 to 1.1m³/min (39 cfm)

Working Pressure 8 bar (116 psi)

Optional Pressures 7-10 bar (102-145 psi)

Tank Volume 600 Litres

Air Treatment Dryer, Pre- & Post-Filters

Noise Level @ 1 m 69 dB(A)

Air Outlet 3/4 inch BSP

Price: $13,685.00 + GST (Free Delivery & Install Sydney*)

Product Code SE CSV8-8

Brochure - Download

Spare Parts - Download

Contact us to buy:  1800 975 021

Motor Power  15 kW (20 hp)

Free Air Delivery  0.98 - 2.45m³/min (87 cfm)

Working Pressure 8 bar (116 psi)

Optional Pressures 7-10 bar (102-145 psi)

Tank Volume 600 Litres

Air Treatment Dryer, Pre- & Post-Filters

Noise Level @ 1 m 73 dB(A)

Air Outlet 1 inch BSP

Price: $17,345.00 + GST (Free Delivery & Install Sydney*)

Product Code SE CSV15-8

Brochure - Download

Spare Parts - Download

Contact us to buy:  1800 975 021

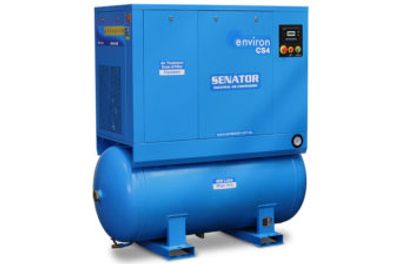

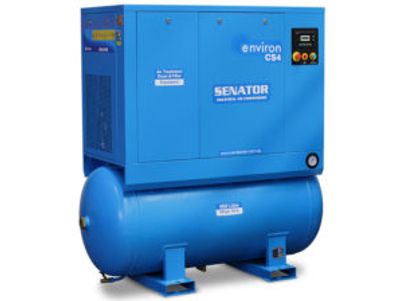

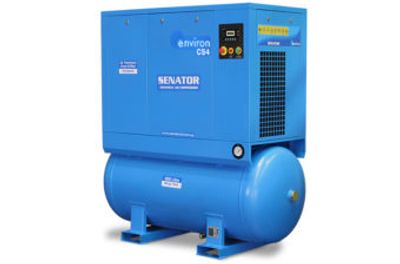

The Senator CS Series 4-in-1 compressed air stations comprise a rotary screw compressor, air receiver tank, refrigerant dryer and both pre- and post-filters in a single integrated package. Save on floor space and installation cost by choosing one of these ready-to-run units that will dependably provide your business with
clean and dry compressed air.

 Energy consumption comprises about 75% of the total annual cost for an electric screw compressor in most industrial applications. A conventional fixed-speed 15 kW unit, for example, uses around $9,000 worth of electricity per year on average working just one 38-hour shift per week. Senator CSV Series variable-speed compressors can use up to 30-50% less electricity than comparable fixed speed models. In the above example, this could add up to a cost saving of approximately $4,500 per year. A Senator CSV Series compressor is the energy smart choice whether for a new installation or a replacement upgrade. It will pay for itself many times over in electricity cost savings

Each model has been developed using innovative European design concepts to achieve a compact layout and then upgraded with heavy-duty components to satisfy the demands of Australia’s harsh operating conditions.

• Compact turn-key compressed air station offers a convenient plug-and play solution with the lowest installation cost and space requirements.
• Soundproofed cabinet and antivibration mounting of rotating components enables the unit to be installed directly at the work site.
• Precision technology rotary screw air-end with advanced rotor profile and slow rotor speed ensures 24/7 reliability, high flow rate, low energy consumption and long service life.
• High efficiency, MEPS compliant electric motor reduces energy consumption and carbon footprint.
• 7, 8 and 10 bar (102, 116 and 145 psi) outlet pressure capability that is suitable for a broad range of compressed air applications. 8 bar (116psi) configuration is standard.
• Largest-in-class 600 litre air receiver tank provides ample air storage capacity to prevent excessive system pressure fluctuations and facilitates more effective condensate removal.
• Star-delta motor starter reduces both peak electrical demand and mechanical shock-loading during compressor start-up.
• Multi-function electronic controller with LED display serves as a user-friendly interface for compressor operation, systems monitoring and protection, and maintenance scheduling.
• Sequential control and remote start/stop capable.
• Refrigerant dryer in its own thermally segregated compartment continuously removes moisture from the compressed air stream.
• Two compressed air filters with element condition gauges remove particulates down to 0.01 micron and limit oil carry-over to 0.01 ppm.
• Timer drain valves plumbed to a single connection point facilitate automatic, clean and safe disposal of water condensate from the air receiver tank, dryer and filters.
• Lift-off cabinet panels are easily removable for maintenance access.
• Spin-on oil filter and air/oil separator elements minimise service downtime.
• Compliant with Australian Workplace Health and Safety Regulations for industrial workplace use."
